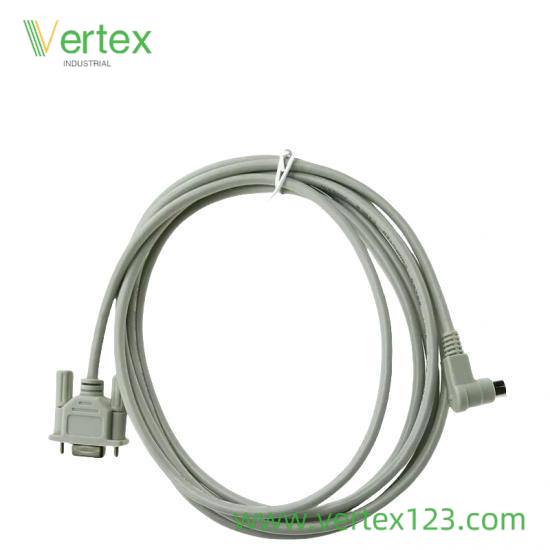

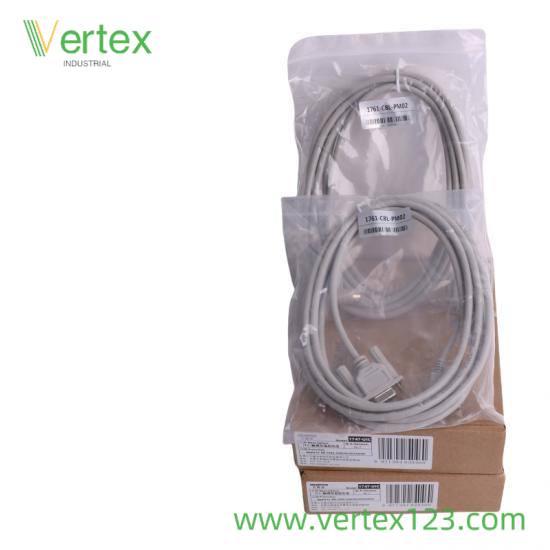

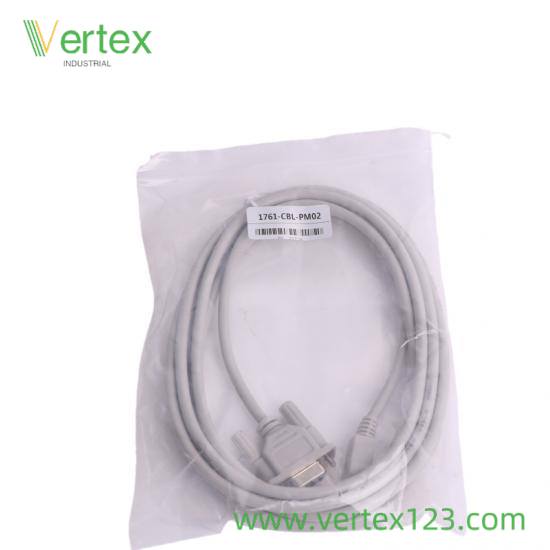

Allen-Bradley 1761-CBL-PM02 ControlNet Communication Cable
The Allen-Bradley 1761-CBL-PM02 ControlNet cable enables high-speed data transmission between CompactLogix controllers and industrial devices. Engineered for mission-critical automation systems, this cable ensures uninterrupted communication in manufacturing plants, process control environments, and robotic assembly lines where signal integrity is paramount.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Rockwell Automation |
| Model | 1761-CBL-PM02 |
| Cable Type | ControlNet (Shielded Twisted Pair) |
| Length | 15 feet / 4.57 meters |
| Connector Type | DB-9 Male to DB-9 Female |
| Voltage Rating | 30V DC |
| Temperature Range | -40°C to +85°C |
| Certifications | UL, CE |
Industrial Applications
This ControlNet cable is essential for:
- Connecting CompactLogix L23/L24 controllers to I/O modules
- Factory automation networks requiring deterministic communication
- Harsh environments with EMI/RFI interference challenges
- Motion control systems and robotic integration
Compatible Systems: Rockwell Automation ControlLogix, CompactLogix 1769 series, and PanelView Plus HMIs. Ideal for pairing with 1769-SM2, 1769-ECR, and 1769-ADN modules.
Vertex Industrial Services
Vertex Industrial sources premium industrial automation hardware from global suppliers, specializing in Rockwell, Siemens, Honeywell, and Emerson systems. Our technical experts provide:
- 1-Year Warranty: Full technical support and replacement guarantee
- Global Sourcing: Can’t find your model? Contact us via WhatsApp for custom procurement
- Pre-Sales Consultation: Application-specific product recommendations
- Quality Assurance: All cables undergo signal integrity testing
Pricing & Availability: Contact us for real-time stock information and volume discounts:
Email: anikaqx@gmail.com |
WhatsApp: +86 136 3952 2374
