Westinghouse 5X00225G01 Process Control Base Assembly for Upper-Level Ethernet Platform

This module is an essential component for industrial automation systems, providing robust process control capabilities through its integration with an Ethernet network. Ideal for enhancing operational efficiency and reliability in manufacturing environments.

Westinghouse 5X00225G01 Process Control Base Assembly

The Westinghouse 5X00225G01 is a high-performance Process Control Base Assembly engineered for upper-level Ethernet platforms in industrial automation systems. This critical module delivers reliable process control capabilities for demanding applications across manufacturing, oil & gas, power generation, and chemical processing industries. Designed as part of Westinghouse’s PLC series, it ensures operational stability while enabling precise system integration in complex automation environments.

Technical Specifications

Manufacturer Westinghouse
Part Number 5X00225G01
Type Process Control Base Assembly
Operating Voltage 24V DC
Output Frequency 30 kHz
Dimensions 12 x 5.2 x 16.6 cm
Weight 0.35 kg

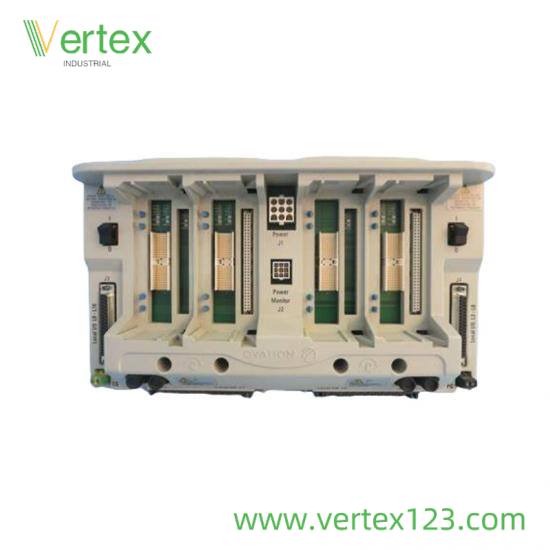

Westinghouse 5X00225G01 Front View

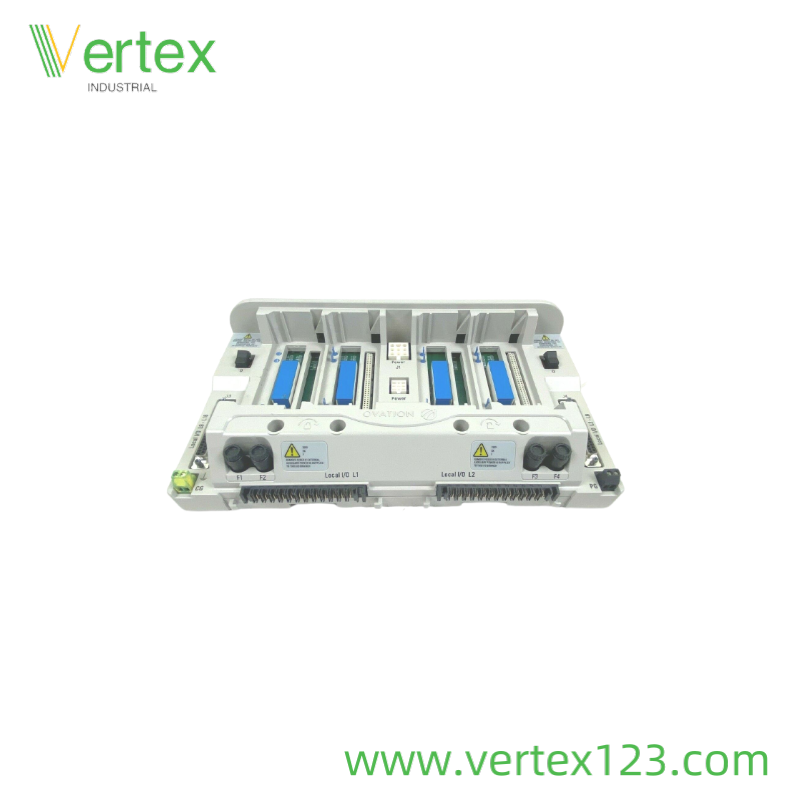

Westinghouse 5X00225G01 Technical Diagram
Westinghouse 5X00225G01 Installation

Applications & Compatibility

This control base assembly is specifically designed for integration into Westinghouse’s Ethernet-based control platforms. Key applications include distributed control systems (DCS), SCADA networks, and real-time process monitoring installations. The module maintains compatibility with Westinghouse’s 5X series controllers and interfaces seamlessly with I/O modules including 5X00119G01, 5X00120G02, and 5X00404G01. Its robust construction ensures reliable performance in environments with electrical noise, vibration, and temperature fluctuations.

Vertex Industrial Services

Vertex Industrial specializes in sourcing and supplying industrial automation hardware from leading brands including Westinghouse, Siemens, Rockwell, and Honeywell. We offer both new surplus and professionally refurbished components with full traceability. Our technical team provides expert pre-sales consultation to ensure component compatibility and system integration success. All products include a comprehensive 1-year warranty with dedicated after-sales support.

For pricing and availability of the Westinghouse 5X00225G01, contact us via email. Can’t find your required model? We’ll source it globally – provide specifications and we’ll procure it for you.
