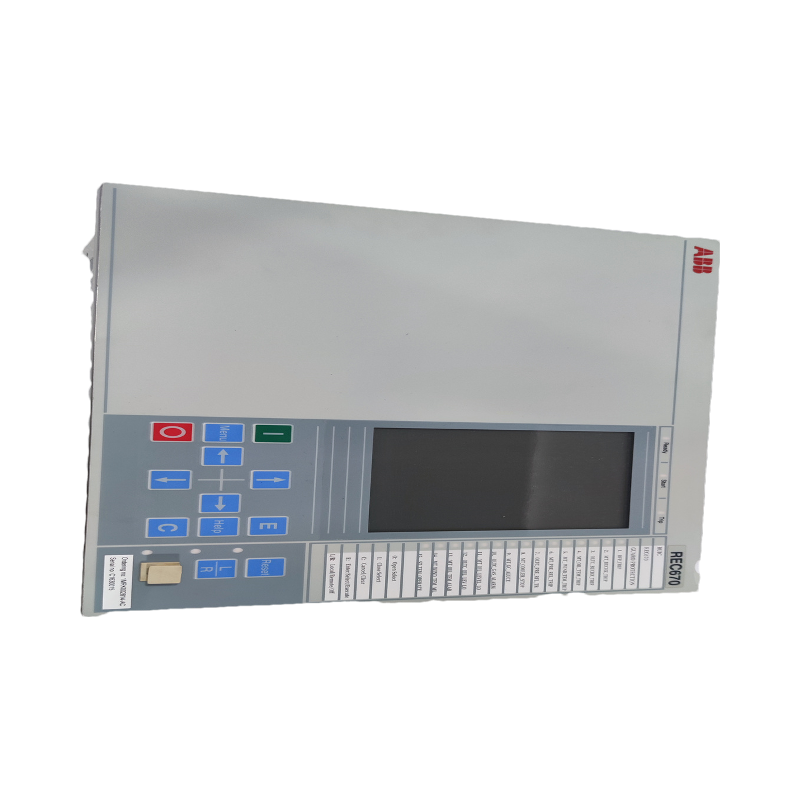

ABB REC670 1MRK002814-AB

Technical Specifications

• Power Supply:
  • Voltage: Supports 24–110 V DC/AC with low power consumption (<5 W), ensuring compatibility with diverse power environments.
  • Redundancy: Dual power inputs for uninterrupted operation in critical applications.
• Signal Handling:
  • Analog Inputs: 0–10 V and 4–20 mA signals with ±0.1% full-scale accuracy for precise measurement of voltage, current, and power.
  • Digital I/O: 16 channels each for binary signals (0/24 V DC), with optical isolation up to 1500 V DC.
  • Temperature Sensors: Direct interface with thermocouples (TC) and resistance temperature detectors (RTD).
• Communication Interfaces:
  • IEC 61850-8-1: Supports both Edition 1 and 2 for interoperable communication in smart substations.
  • LonWorks/SPA: Legacy protocols for integration with existing ABB station bus systems.
  • Redundant Communication: Built-in Parallel Redundancy Protocol (PRP) for star or ring bus architectures.
  • Process Bus: Supports IEC 61850-9-2 LE sampled values for high-speed data exchange.
• Environmental Ratings:
  • Operating Temperature: -25°C to +70°C (-13°F to +158°F), suitable for harsh industrial environments.
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Humidity: 5–95% non-condensing.
  • Protection Class: IP40-rated housing for dust and solid object protection.
• Physical Dimensions:
  • Size: 290 mm (depth) × 220 mm (width) × 100 mm (height), designed for DIN rail mounting.
  • Weight: 4 kg (net), facilitating easy installation.

Functional Features

1. Protection and Control:
   • Comprehensive Protection: Overcurrent, earth fault, thermal overload, and differential protection for transformers, feeders, and motors.
   • Voltage Regulation: Advanced algorithms for maintaining grid stability with reactive compensation.
   • Distributed Control: Executes local logic via GOOSE messages, reducing reliance on centralized systems.
2. Diagnostics and Monitoring:
   • Real-Time Data Logging: Records events, waveforms, and fault data with millisecond timestamp accuracy.
   • Health Monitoring: Continuous self-checks for internal components (CPU, communication modules) with alarm triggers for degraded performance.
3. Redundancy and Reliability:
   • Dual Power Inputs: Automatic failover during primary power loss.
   • High MTBF: Engineered for long-term reliability, aligning with ABB’s industrial-grade standards.
4. Configuration Flexibility:
   • Parameter Customization: Adjustable protection settings, communication parameters, and logic functions via ABB PCM600 software.
   • Firmware Updates: Remote firmware upgrades to enhance compatibility with evolving industry standards.
5. Cybersecurity:
   • IEC 62351 Compliance: Secure communication protocols (e.g., TLS, X.509 certificates) to protect against unauthorized access.
   • Centralized Account Management (CAM): Integration with authentication infrastructure for role-based access control.

Application Scenarios

1. Substation Automation:
   • Controls circuit breakers, disconnectors, and voltage regulators in high-voltage substations.
   • Enables seamless grid integration of renewable energy sources (solar, wind) by managing inverter-based distributed energy resources (DERs).
2. Industrial Power Systems:
   • Protects and controls large motors, transformers, and switchgear in steel mills, cement plants, and mining operations.
   • Integrates with distributed control systems (DCS) in chemical and petrochemical facilities for process optimization.
3. Grid Modernization:
   • Supports real-time monitoring and adaptive protection in smart grids with high DER penetration.
   • Manages voltage and power flow in high-voltage direct current (HVDC) transmission links.
4. Critical Infrastructure:
   • Ensures uninterrupted power supply in data centers by synchronizing backup generators and monitoring UPS systems.
   • Manages traction power substations for railways and metro systems.

Operational Advantages

• Interoperability: Seamless integration with multi-vendor systems via IEC 61850, reducing engineering complexity.
• Scalability: Modular design allows expansion for large-scale substations, with the ability to add communication modules or protection functions.
• Real-Time Performance: Trip times as low as 13 ms for distance protection, ensuring rapid fault response.
• Ease of Use: Local HMI with a graphical interface for quick parameter adjustments and diagnostics.

Documentation and Support

• Technical Resources: Detailed configuration guidelines in the Relion® 670 Series Technical Manual and IEC 61131-2 standard.
• Authorized Service: Field calibration, firmware updates, and repair services by ABB-certified partners.
• Lifecycle Management: Spare parts availability for up to 10 years post-discontinuation, aligned with ABB’s Classic Phase model.

Key Considerations

• Installation: Requires proper grounding and compliance with IEC 61000-6-2 EMC standards.
• Training: ABB offers specialized training on IEC 61850 configuration and substation automation.
• Compatibility: Works with Relion® Manager software version 4.0 or later for parameter management.
