- Communication Interface: It has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, with a speed of 10 Mbit/s, conforming to IEEE 802.3. There are also two RJ45 serial ports (COM3, COM4). COM3 is an RS – 232C port with modem control signals, and COM4 is isolated for connecting configuration tools.
- I/O Capacity: The maximum number of I/O modules on the module bus is 96 (single PM866) or 84 (red – configured PM866). The CEX bus can support 12 communication modules, and the maximum supply current is 2.4 A.

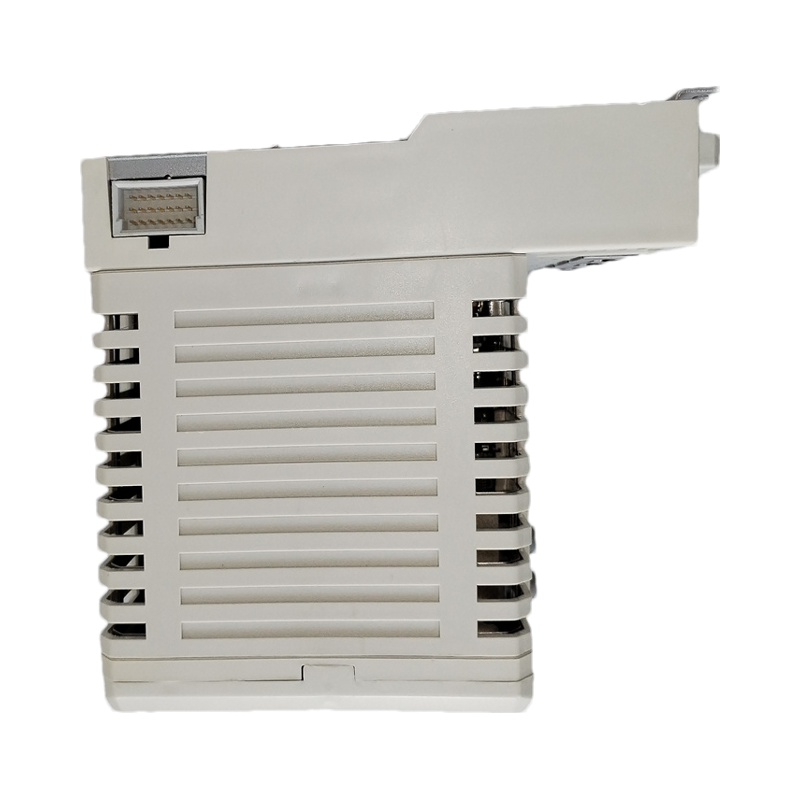

- Mechanical Dimensions: The width is 119 mm, the height is 186 mm, the depth is 135 mm, and the weight is 1200 g.
- Function Features
- High – performance Control: With a high – speed processor and fast – computing capabilities, it can quickly process a large number of control instructions, enabling precise control of industrial processes1.
- Redundancy Support: It supports CPU redundancy, including CPU, CEX – Bus, communication interfaces, and S800 I/O, which improves the reliability and availability of the system13.
- Modular Design: It adopts a modular structure, which is convenient for users to expand the system functions according to actual needs, and can be gradually expanded by adding modules1.
- Easy Installation: With a unique sliding and locking mechanism, the DIN – rail installation and disassembly procedures are simple, which is convenient for on – site installation and maintenance13.
- Good EMC Performance: It has passed a comprehensive EMC certification, with strong anti – interference ability, which can work stably in a complex industrial electromagnetic environment1.
- Application Scenarios2
- Industrial Automation: It is widely used in production line automation, process control, and robot control, which can realize the automation of the production process and improve production efficiency and product quality.
- Process Control: It is applicable to industries such as chemical, electric power, and metallurgy, and is responsible for the control and regulation of process parameters, ensuring the stable operation of the production process.
- Mechanical Control: It can be used in CNC machine tools, machining centers, and other equipment to realize the precise control of mechanical motion and improve processing accuracy.
- Other Fields: It is also used in the packaging industry, textile industry, energy management, building automation, and rail transit automation control, etc., which can meet the control needs of different industries.
