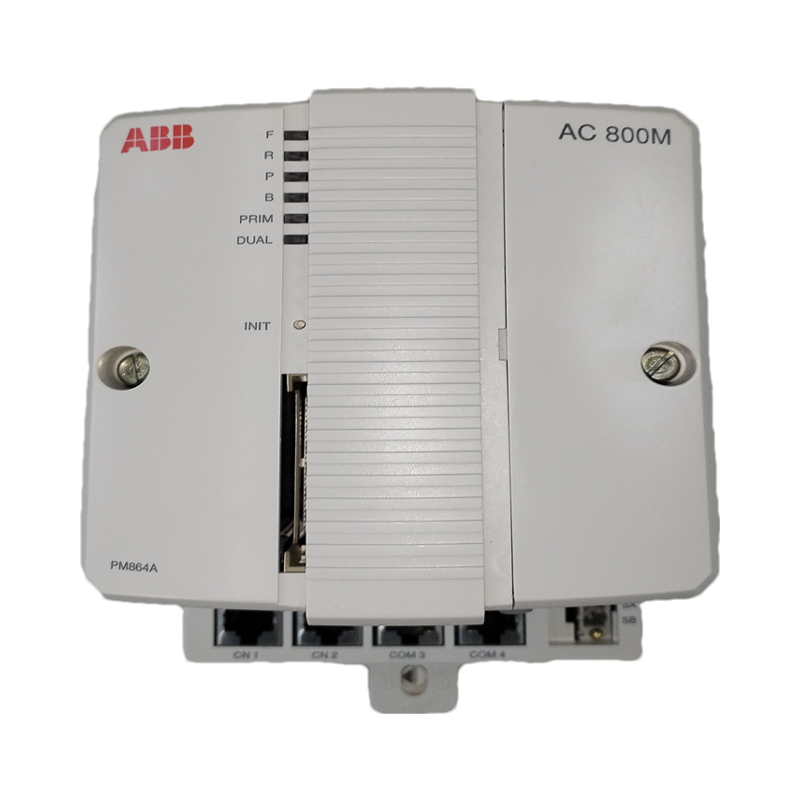

ABB PM864AK02

• Communication Interfaces:
  • Ethernet (for high-speed networking).
  • RS232, CAN, Serial Port (for connecting to various field devices).
• Protocols Supported: Modbus, PROFIBUS, Ethernet/IP, and other industrial protocols.
• Operating Temperature: -25 °C to +70 °C (suitable for harsh industrial environments).
• Protection Level: IP20 (dust and low-level water resistance).
• Installation: DIN rail mounting for easy integration into control panels.
• Minimum Cycle Time: 1 millisecond (for fast control loops).
• Diagnostic Functions: Fault self-diagnosis and status indication for proactive maintenance.

2. Functional Features

• High Reliability: Designed with redundancy support to ensure continuous operation even if one processor fails.
• Powerful Computing: Handles complex control logic and data processing tasks efficiently.
• Flexible Communication: Multiple interfaces and protocol support enable seamless integration with various devices and networks.
• Self-Diagnostic Capabilities: Detects faults and provides alerts for quick troubleshooting.
• Hot-Swappable Design: Allows replacement without system shutdown, minimizing downtime.
• Scalability: Can be used with S800/S900 I/O modules for expanded input/output capabilities.
• User-Friendly Interface: Simplifies configuration and monitoring.

3. Application Scenarios

• Industrial Automation:
  • Manufacturing: Controls production lines, robotic systems, and assembly processes.
  • Process Control: Monitors and regulates chemical reactions, temperature, and pressure in industries like oil & gas, pharmaceuticals, and food & beverage.
• Power Generation & Distribution:
  • Manages power plants, substations, and renewable energy systems (e.g., solar, wind).
• Building Automation:
  • Controls HVAC, lighting, and security systems in commercial buildings.
• Transportation:
  • Used in traffic management systems, railway signaling, and port automation.
• Water & Wastewater Treatment:
  • Optimizes pumping stations, filtration, and disinfection processes.
• Environmental Monitoring:
  • Controls air quality, water level, and soil moisture sensors in smart city applications.

4. Key Advantages

• High Availability: Redundant design ensures 99.99% uptime for mission-critical applications.
• Performance: Fast cycle times and high computing power support real-time control.
• Interoperability: Compatible with a wide range of industrial protocols and devices.
• Ease of Maintenance: Self-diagnostics and hot-swapping reduce operational costs.
• Global Support: Backed by ABB’s worldwide service network for spare parts and technical assistance.

5. Certifications

• Complies with IEC 61010 (safety standards for electrical equipment).
• Certified for ATEX Zone 2 (explosive atmospheres) and UL/cUL safety standards.
