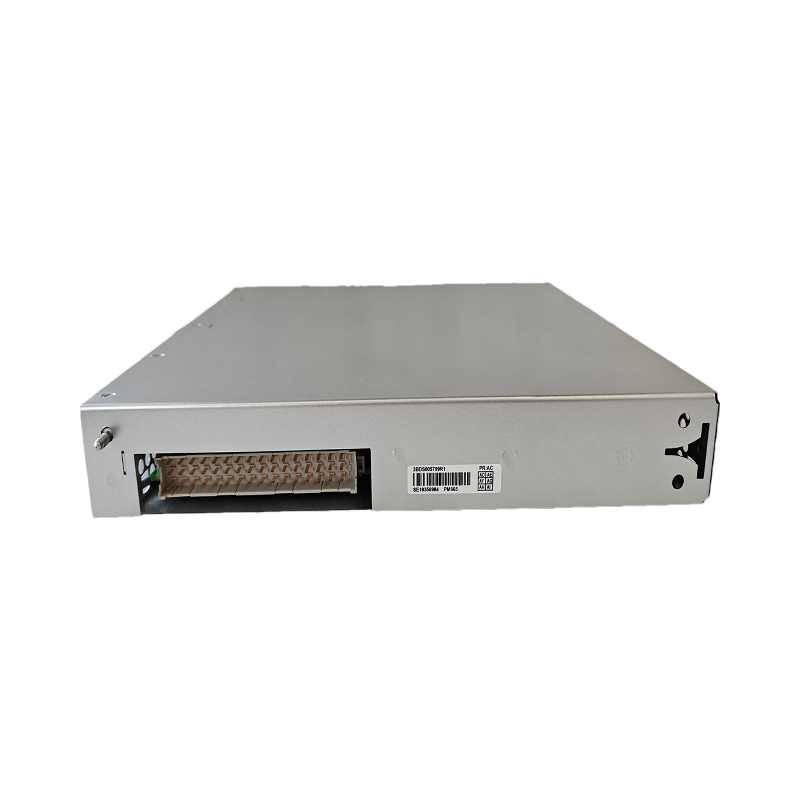

ABB PM665

• Communication Interfaces:
  • Ethernet: 10/100 Base-TX RJ-45 port for high-speed networking.
  • Serial Ports:
    • COM1: RS-232
    • COM2: Configurable (RS-232/422/485).
  • Fieldbus Support: Profibus, Modbus, EtherNet/IP, and AF100 (ABB’s high-performance protocol).
• Storage: Built-in CF card slot for expandable memory.
• Power Supply:
  • DC Input: 9–30V DC (standard).
  • AC Input (Optional): 100–240V AC via external adapter.
  • Power Consumption: 12V @ 0.45A under typical load.
• Environmental Robustness:
  • Operating Temperature: -20°C to +70°C (extended range for harsh environments).
  • Storage Temperature: -40°C to +85°C.
  • Protection: IP65-rated enclosure (dust/water resistance).
  • Vibration/Shock Resistance: 5g RMS (5–500Hz) and 50G peak acceleration (11ms duration).
  • EMC Compliance: Meets CE/FCC Class A standards.

2. Functional Features

• High Reliability: Designed for 24/7 industrial operation with redundant voters and high-speed links to minimize downtime.
• Redundancy Support: Dual-module configuration ensures fault tolerance in critical applications.
• Real-Time Control: Low-latency processing (<20 cycles per second) for precise automation tasks.
• Programmability: Configurable via ABB’s Advance Engineering Workbench (EWS) software, supporting module testing and debugging.
• Scalability: Flexible I/O expansion and protocol compatibility for evolving system requirements.
• Visualization: VGA port (800×600 resolution) enables local monitoring via external displays.

3. Application Scenarios

• Industrial Automation:
  • Process Control: Managing chemical plants, refineries, and power generation systems.
  • Machine Control: Coordinating robotic arms, CNC machines, and assembly lines.
  • Sensor Integration: Interfacing with temperature, pressure, and flow sensors for data acquisition.
• Energy Management:
  • Power Grids: Monitoring substation equipment and renewable energy systems (solar/wind).
  • Water Treatment: Controlling pumps, valves, and water quality sensors in municipal/industrial facilities.
• Transportation:
  • Rail Systems: Managing signaling, track switching, and train control in railways and metros.
  • Traffic Management: Optimizing traffic light sequences and pedestrian crossings in smart cities.
• Building Automation:
  • HVAC Control: Regulating heating, ventilation, and air conditioning for energy efficiency.
  • Security Systems: Integrating access control, surveillance cameras, and fire alarms.
• Mining & Heavy Industry:
  • Conveyor Systems: Synchronizing material handling in mines and quarries.
  • Crusher Control: Adjusting motor speeds and load distribution for optimal performance.

4. Key Advantages

• Industrial-Grade Design: Withstands extreme temperatures, vibrations, and electrical noise.
• Protocol Agnosticism: Seamlessly connects with PLCs, DCS, and SCADA systems from multiple vendors.
• Cost-Efficiency: Reduces wiring complexity and maintenance costs through centralized control.
• Global Support: Backed by ABB’s global service network for spare parts and technical assistance.

5. Certifications

• Complies with IEC 61131-3 (programmable controllers standard).
• Certified for ATEX Zone 2 (explosive atmospheres) and UL/cUL safety standards.
