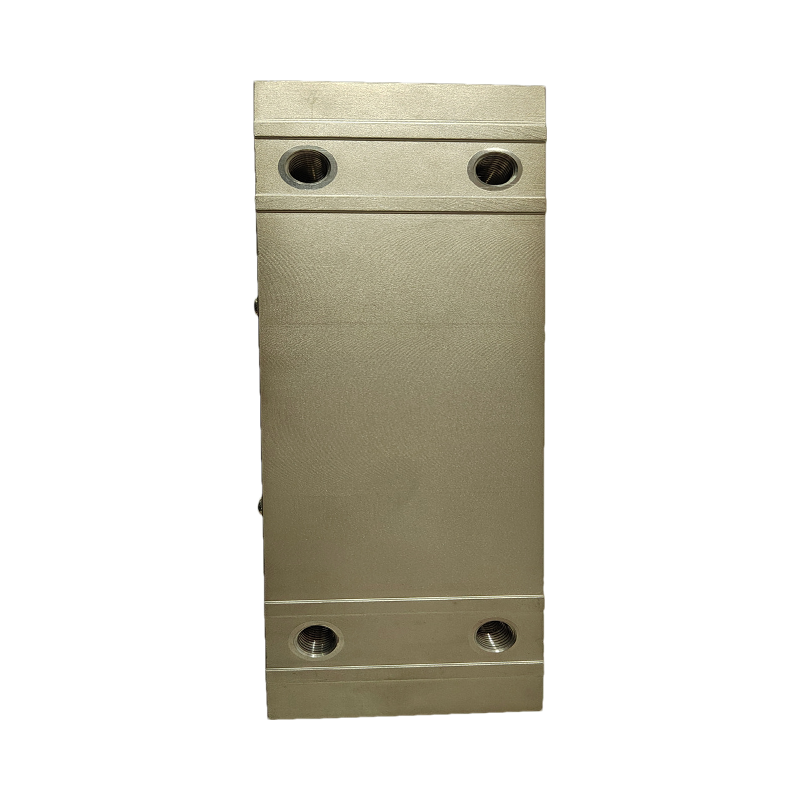

ABB PFTL101A 1.0KN

Technical Specifications

• Force Measurement:
  • Rated Load: 1.0 kN (225 lbs), with overload capacity up to 5.0 kN (1,125 lbs) for short-term conditions .
  • Deflection: 0.015 mm (0.0006 inches) at rated load, ensuring minimal mechanical interference with the measured process .
  • Spring Constant: 65 kN/mm (371,000 lbs/inch), providing high stiffness for stable readings under dynamic loads .
• Accuracy:
  • Nonlinearity: ≤0.02% of full scale (FS), ensuring precise tension control in critical processes .
  • Repeatability: <0.05% FS, guaranteeing consistent performance across repeated measurements .
• Signal Output:
  • Analog: mV/V (bridge output) with standard configurations for 4–20 mA or 0–10 V interfaces .
  • Digital: Optional RS485 or Profibus DP connectivity for integration with modern control systems .
• Environmental Ratings:
  • Operating Temperature: -20°C to +80°C (-4°F to +176°F), with select versions rated for +50°C in high-humidity environments .
  • Protection Class: IP66/67 (standard) or IP66/67 acid-resistant variants (AER/BER) for corrosive settings like paper machine wet ends .
  • Vibration Resistance: Withstands 5 g (50–2,000 Hz) and shock up to 50 g (11 ms duration) .
• Physical Dimensions:
  • Size: 90 mm (width) × 30 mm (height) × 120 mm (depth), weighing approximately 2 kg (4.4 lbs) for easy integration .
  • Mounting: PillowBlock design with six stainless steel screws for secure installation on fixed structures .

Functional Features

1. Pressductor® Technology:
   • Magnetoelastic Sensing: Measures force by detecting changes in magnetic permeability, eliminating wear from mechanical components and enabling unlimited load cycles .
   • High Overload Tolerance: Withstands up to 5× rated load without permanent damage, critical for applications with sudden tension spikes .
2. Modular Design:
   • Three Versions:
     • Standard (PFTL101A/B): Pluggable cables for general industrial use .
     • Mill Duty (PFTL101AE/BE): Fixed cables and reinforced housing for paper machine dryers .
     • Acid Resistant (PFTL101AER/BER): AISI 316L stainless steel for wet-end paper processing .
   • Field Replaceability: Individual components (e.g., cables, connectors) can be serviced without removing the sensor from the process line .
3. Signal Conditioning:
   • Built-in Amplifiers: Convert raw mV/V signals to industry-standard 4–20 mA or 0–10 V outputs, reducing noise interference .
   • Temperature Compensation: Maintains accuracy within ±0.05% FS over the full operating temperature range .
4. Diagnostics:
   • Self-Test Function: Continuously monitors sensor health and triggers alarms for open circuits or cable faults .
   • Real-Time Data Logging: Supports integration with SCADA systems for trend analysis and predictive maintenance .

Application Scenarios

1. Paper and Pulp Industry:
   • Web Tension Control: Optimizes tension in paper machines, calenders, and coating lines to prevent tearing or wrinkling .
   • Reel Management: Monitors tension during winding/unwinding processes to ensure uniform roll density .
2. Metals and Mining:
   • Rolling Mills: Controls tension in steel strip production to maintain dimensional consistency .
   • Conveyor Systems: Ensures proper belt tension for efficient material handling in mineral processing .
3. Printing and Packaging:
   • Flexographic Printing: Stabilizes tension in multi-color presses to align print patterns accurately .
   • Plastic Film Extrusion: Regulates tension during film stretching to prevent thickness variations .
4. Renewable Energy:
   • Wind Turbine Blade Manufacturing: Measures tension in composite material layers during blade curing .
   • Solar Panel Production: Controls web tension in photovoltaic cell lamination processes .
5. Cable and Wire Production:
   • Stranding Machines: Maintains uniform tension in wire strands to enhance conductor quality .
   • Insulation Coating: Ensures consistent sheath thickness during cable extrusion .

Operational Advantages

• Low Maintenance: No moving parts or calibration required for up to 10 years under normal conditions .
• Interoperability: Seamless integration with ABB’s Symphony Plus DCS and third-party PLCs via analog or digital protocols .
• Cost Efficiency: Reduces downtime by minimizing sensor replacements and optimizing process yields .
• Sustainability: Acid-resistant variants reduce material waste in environmentally sensitive operations .

Documentation and Support

• Technical Resources: Detailed installation manuals and calibration certificates are provided with each sensor, compliant with ISO 9001 standards .
• Lifecycle Support: ABB offers firmware updates and spare parts availability for 15 years post-discontinuation .
• Training: Customized workshops on tension control best practices are available through ABB’s industrial automation division .

Key Considerations

• Installation:
  • Torque specifications for mounting screws: 10–12 N·m (7.4–8.9 ft·lb) to avoid structural deformation .
  • Cable Length: Maximum 100 meters for analog signals; 200 meters for digital interfaces with repeaters .
• System Integration:
  • Signal Conditioning: Use ABB’s PFTL-CON-01 module for mV/V to 4–20 mA conversion in legacy systems .
  • Software Compatibility: Configurable via ABB’s Relion® Manager or third-party tools like MATLAB for advanced analytics .
