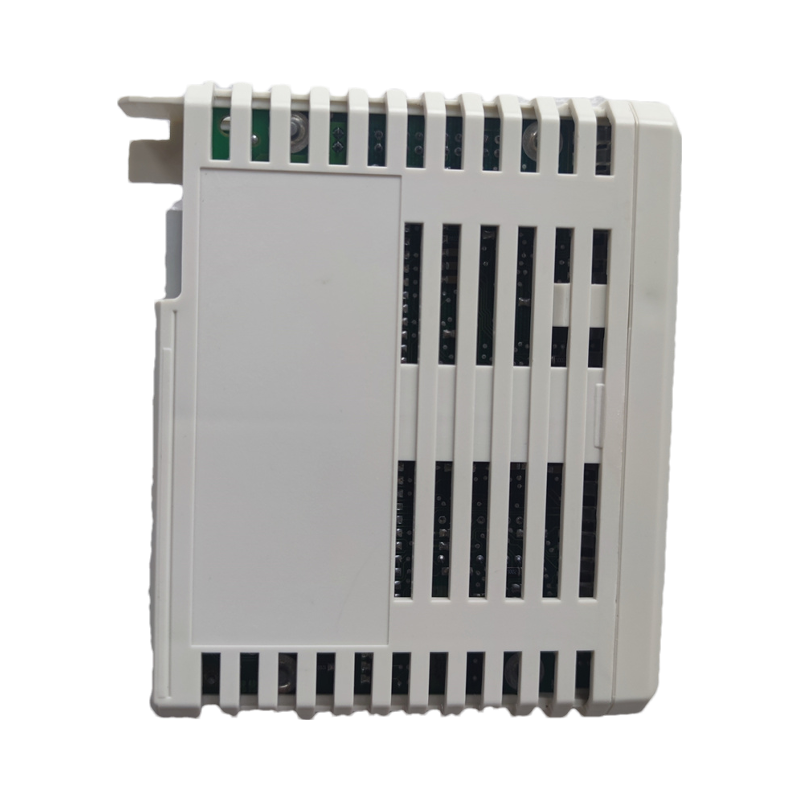

ABB LDGRB-01

Technical Specifications

• Power Supply:
  • Voltage: 24 V DC (±15%) with low power consumption (typically <5 W), ensuring compatibility with standard industrial DC power systems .
  • Redundancy: Supports dual power inputs for uninterrupted operation in critical environments .
• Signal Handling:
  • Digital Inputs: 8–16 channels (depending on variant) for binary signals (0/24 V DC), with optical isolation to protect against voltage spikes .
  • Digital Outputs: 8–16 channels (depending on variant) for relay or solid-state switching, capable of driving loads up to 2 A per channel .
  • Resolution: 12-bit for analog variants (if applicable), ensuring precise signal conversion .
• Communication Interfaces:
  • Ethernet: Supports Modbus TCP and Profibus DP for high-speed data exchange with control systems .
  • Serial: RS-485 interface for legacy device connectivity, compatible with DNP 3.0 and IEC 60870-5-103 protocols .
• Environmental Ratings:
  • Operating Temperature: 0°C to 55°C (32°F to 131°F), suitable for harsh industrial environments .
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F) .
  • Humidity: 5–95% non-condensing, ensuring stability in humid or dry conditions .
  • Protection Class: IP20-rated housing for dust and solid object protection, optimized for indoor control panels .
• Physical Dimensions:
  • Size: 132 mm (depth) × 105 mm (width) × 52 mm (height), designed for DIN rail mounting in compact control cabinets .
  • Weight: 0.8–1.2 kg (net), facilitating easy installation and maintenance .

Functional Features

1. Signal Conditioning:
   • Galvanic Isolation: Protects the control system from ground loops and electromagnetic interference (EMI) .
   • Debounce Filtering: Eliminates noise from mechanical switch inputs, ensuring accurate status detection .
2. Control and Actuation:
   • Relay Outputs: Provide fail-safe switching for critical equipment like motor starters and solenoid valves .
   • Solid-State Outputs: Offer silent operation and longer lifespan for high-frequency switching applications .
3. Diagnostics and Monitoring:
   • Real-Time Status LEDs: Indicate channel-level input/output states and communication activity .
   • Fault Detection: Automatically detects short circuits, overvoltage, and open-circuit conditions, triggering alarms for maintenance .
4. Configuration Flexibility:
   • Parameter Customization: Adjustable response times, voltage thresholds, and communication settings via ABB Ability™ System 800xA or local HMI .
   • Firmware Updates: Supports remote firmware upgrades to enhance compatibility with evolving industry standards .

Application Scenarios

1. Manufacturing:
   • Machine Control: Interfaces with sensors (e.g., proximity switches, encoders) and actuators (e.g., pneumatic valves, motor drives) in assembly lines and robotics .
   • Quality Control: Monitors conveyor belt speeds and product detection systems to ensure compliance with production standards .
2. Power Generation:
   • Grid Synchronization: Controls generator circuit breakers and monitors turbine status in thermal, hydro, and renewable energy plants .
   • Unit Protection: Executes emergency shutdowns for generators during fault conditions like overspeed or overcurrent .
3. Process Industries:
   • Water Treatment: Automates pump stations, valves, and chemical dosing systems in wastewater treatment plants .
   • Oil and Gas: Manages wellhead isolation valves and pipeline pressure regulators in upstream and downstream operations .
4. Building Automation:
   • HVAC Systems: Controls heating, ventilation, and air conditioning units by integrating with temperature sensors and damper actuators .
   • Lighting Management: Optimizes energy consumption by synchronizing lighting schedules with occupancy sensors .

Operational Advantages

• Reliability: Engineered with high MTBF (Mean Time Between Failures) exceeding 100,000 hours, consistent with ABB’s industrial-grade components .
• Scalability: Supports multi-module configurations for large-scale systems, as seen in ABB’s AC 800M DCS architecture .
• Cybersecurity: Compliant with ISA Secure Level 2 certification, ensuring protection against unauthorized access and data breaches .

Documentation and Support

• Technical Resources: General guidelines for ABB I/O modules can be found in the AC 800M Technical Manual and IEC 61131-2 standard .
• Authorized Service: Field calibration, firmware updates, and repair services are provided by ABB-certified partners, adhering to OEM standards .
• Lifecycle Management: Aligned with ABB’s Classic Phase lifecycle model, ensuring spare parts availability for up to 10 years post-discontinuation .

Key Considerations

• Compatibility: Requires integration with ABB’s AC 800M DCS and 800xA Control Builder software versions 6.0.0-1 or later .
• Installation: DIN rail mounting with proper grounding is mandatory to meet IEC 61000-6-2 EMC standards .
• Training: ABB offers specialized training on industrial I/O module configuration and troubleshooting for system integrators .
