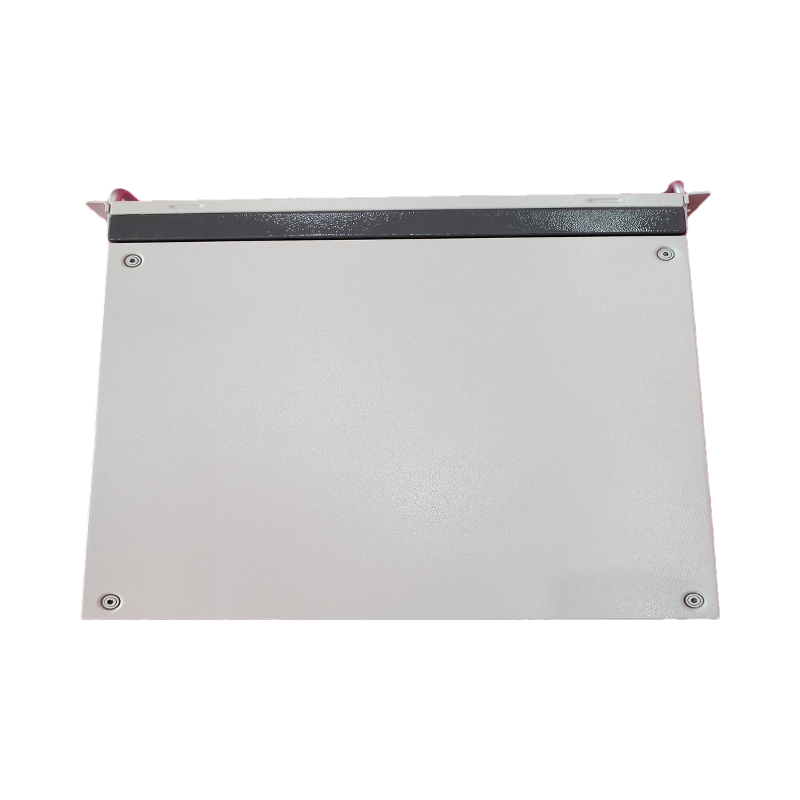

ABB AO2020

• Accuracy and Precision:
  • Measurement accuracy: ±1% of full scale.
  • Repeatability: ±0.05% FS.
  • Linear deviation: ±1% FS.
• Environmental Adaptability:
  • Operating temperature: -10°C to +45°C (industrial environments).
  • Storage temperature: -40°C to +85°C.
• Power Supply:
  • Input voltage: 100–240 V AC (±15%), 50–60 Hz (±3 Hz).
  • Power consumption: <187 VA (max).
• Communication Interfaces:
  • RS-232/RS-485 for serial communication.
  • Analog output: 4–20 mA DC.
  • Ethernet/IP, Profinet, and Modbus for industrial networking.
• Physical Specifications:
  • Weight: 7–15 kg (depending on configuration).
  • Dimensions: 400 mm × 300 mm × 200 mm (approximate).
  • Enclosure: IP65-rated for dust/water resistance.

2. Functional Features

• High Precision and Reliability:
  • Advanced infrared spectroscopy ensures accurate gas detection under varying industrial conditions.
  • Electrochemical sensors provide stable O₂ measurement with minimal drift.
• Automatic Calibration and Maintenance:
  • Supports auto-calibration using standard gases or process gases, reducing manual intervention.
  • Self-diagnostic functions with error code output for proactive maintenance.
• User-Friendly Interface:
  • Intuitive 5-button menu-driven operation with a backlit display for easy configuration.
  • Graphical data visualization for real-time monitoring.
• Flexible Configuration:
  • Modular design allows customization of gas components and measurement ranges.
  • Supports multiple communication protocols for seamless integration with PLCs, DCS, and SCADA systems.
• Robust Construction:
  • Designed for harsh industrial environments with resistance to vibrations, dust, and corrosive gases.
  • Compact 19-inch rack-mountable design for space-efficient installation.

3. Application Scenarios

• Industrial Process Control:
  • Chemical Industry: Monitors gas concentrations in reactors, distillation columns, and pipelines to ensure safety and efficiency.
  • Power Generation: Optimizes combustion efficiency in coal/gas-fired plants by measuring O₂, CO₂, and CO in flue gas.
  • Metallurgy: Controls blast furnace and converter gases to improve energy utilization and reduce emissions.
• Environmental Monitoring:
  • Emission Control: Tracks SO₂, NOx, and particulate matter in industrial stacks to comply with environmental regulations.
  • Waste Incineration: Monitors harmful gases (e.g., dioxins, HCl) in incinerator flue gas.
• Energy Sector:
  • Biomass Power Plants: Ensures optimal combustion by analyzing O₂ and CO levels.
  • Natural Gas Processing: Detects impurities (e.g., H₂S) in gas pipelines.
• Other Applications:
  • Cement Production: Monitors CO₂ in kiln exhaust for process optimization.
  • Food and Beverage: Verifies gas purity in modified atmosphere packaging (MAP).
  • Pharmaceuticals: Ensures inert gas quality in sterile manufacturing environments.

4. Key Advantages

• Multi-Gas Analysis: Simultaneously measures up to four gas components, reducing the need for multiple analyzers.
• Low Maintenance: Automatic calibration and self-cleaning mechanisms minimize downtime.
• Scalability: Easily integrates with existing control systems via standard protocols.
• Cost-Efficiency: Reduces operational costs through improved process control and reduced emissions.
• Global Support: Backed by ABB’s global service network for spare parts and technical assistance.

5. Certifications

• Complies with IEC 61010 (safety standards for electrical equipment).
• Certified for ATEX Zone 2 (explosive atmospheres) and UL/cUL safety standards.
