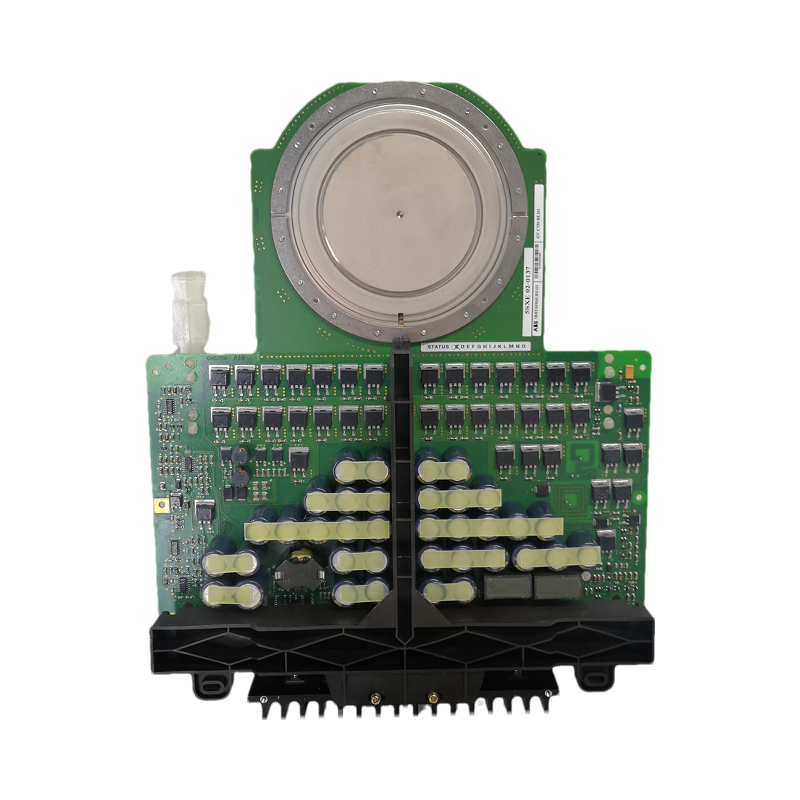

ABB 5SHY3545L0009

• Function Features
  • High – power Switching: It has high – voltage withstand and current – carrying capabilities, and can stably operate under high – voltage and high – current conditions, realizing high – power switching control2.
  • Low Loss: With low on – state voltage drop and low switching loss, it can improve system efficiency and reduce power consumption16.
  • High Reliability: Made of high – quality components, through strict testing, it has high reliability, and its asymmetric structure also provides lower leakage current and can meet the requirements of harsh industrial environments36.
  • Precise Control: It can precisely control the on and off of current, and realize precise regulation of voltage and current, which is suitable for occasions requiring high – precision power control2.
  • Good Compatibility: It supports a variety of industrial automation interfaces, is easy to integrate with other devices, and provides convenient interfaces and programming tools, supporting remote monitoring and maintenance5.
  • Strong Protection Function: It has over – current, over – voltage and over – temperature protection functions, which can effectively protect the module and related equipment and improve the stability of the system5.
• Application Scenarios
  • Power System2: Widely used in high – voltage direct – current (HVDC) transmission and flexible alternating – current transmission systems (FACTS). It can convert alternating current into direct current for long – distance transmission and then convert direct current back into alternating current, playing a key role in power conversion and control.
  • Industrial Motor Drive2: In industrial motor drives, by controlling the conduction angle of the thyristor, it can adjust the voltage and current of the motor, realize functions such as soft start and speed regulation of the motor, and improve the operating efficiency and reliability of the motor.
  • Renewable Energy Generation3: It is applicable to wind power generation, hydropower generation and other renewable energy systems, and is used for the power control and conversion links of generators, helping to integrate renewable energy into the power grid.
  • Reactive Power Compensation2: It can be used in reactive power compensation equipment, such as static synchronous compensators (STATCOMs), to adjust the reactive power in the power system, improve the power factor, and enhance the stability and power quality of the power grid.
  • Electric Furnace Heating and Lighting Regulation5: It is used for resistive load electric heating and lighting system power regulation, and can control the power input of electric furnaces and lighting equipment through precise control to meet different process and use requirements.
