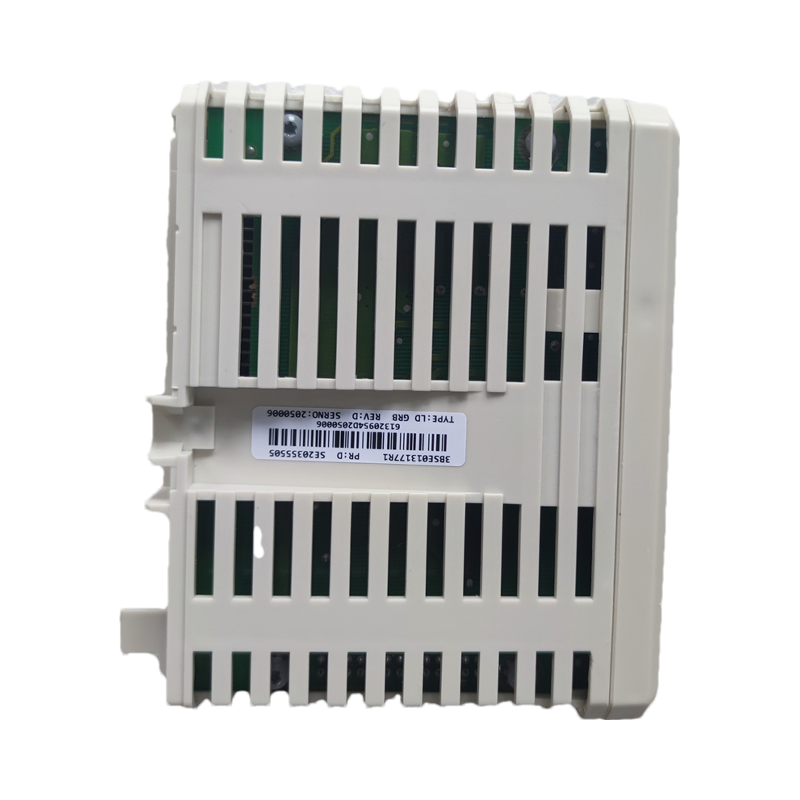

ABB 3BSE013177R1

Technical Specifications

• Power Supply:
  • Voltage: 24 V DC (±15%) with redundant power input support for uninterrupted operation in critical systems .
  • Current Consumption: Typically <5 W, ensuring energy efficiency in long-term deployments .
• Signal Handling:
  • Analog Inputs: Supports 4–20 mA, 0–10 V signals with ±0.1% full-scale (FS) accuracy, ideal for process control applications .
  • Digital Inputs/Outputs: Compatible with binary signals (0/24 V DC), with optical isolation to protect against voltage spikes up to 1500 V DC .
  • Temperature Sensors: Directly interfaces with thermocouples (TC) and resistance temperature detectors (RTD) for industrial temperature monitoring .
• Communication Interfaces:
  • Backplane Bus: Integrates with ABB’s proprietary DCS platforms (800xA, Symphony Plus) for real-time data exchange .
  • Fieldbus Support: Optional Profibus DP interface for connecting to distributed field devices, with fiber optic extension capabilities for long-distance transmission .
• Environmental Ratings:
  • Operating Temperature: -25°C to +70°C (-13°F to +158°F), suitable for extreme industrial conditions .
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F) .
  • Humidity: 5–95% non-condensing, ensuring stability in humid or dry environments .
  • Protection Class: IP20-rated housing for dust and solid object protection, requiring indoor installation in control cabinets .
• Physical Dimensions:
  • Size: 300 mm (depth) × 200 mm (width) × 200 mm (height), designed for DIN rail mounting in compact control panels .
  • Weight: 1.0 kg (net), facilitating easy installation and maintenance .

Functional Features

1. Signal Conditioning:
   • Galvanic Isolation: Separates field signals from the control system to eliminate ground loops and electromagnetic interference (EMI) .
   • Filtering: Built-in debounce filters for digital inputs to ensure noise-free signal acquisition from mechanical switches .
2. Diagnostics and Monitoring:
   • Real-Time Status LEDs: Indicates power, communication, and channel-level health for quick visual troubleshooting .
   • Fault Detection: Automatically identifies short circuits, overvoltage, and open-circuit conditions, triggering alarms via the DCS .
3. Redundancy and Reliability:
   • Dual Power Inputs: Ensures continuous operation during primary power loss, with automatic failover .
   • High MTBF: Engineered for long-term reliability, aligning with ABB’s industrial-grade components .
4. Configuration Flexibility:
   • Parameter Customization: Adjustable signal ranges, calibration offsets, and communication settings via ABB’s Control Builder software .
   • Firmware Updates: Supports remote firmware upgrades to enhance compatibility with evolving industry standards .

Application Scenarios

1. Process Industries:
   • Chemical and Petrochemical: Manages analog signals from pressure transmitters and flow meters in reactor systems, ensuring precise process control .
   • Water Treatment: Automates pump stations and chemical dosing systems by integrating with level sensors and solenoid valves .
2. Power Generation:
   • Thermal and Hydro Plants: Monitors turbine temperatures and generator stator windings using TC/RTD inputs, enabling predictive maintenance .
   • Grid Synchronization: Controls circuit breakers and monitors voltage/frequency signals during generator synchronization .
3. Oil and Gas:
   • Upstream Operations: Manages wellhead pressure and flow data, interfacing with PLCs for remote well control .
   • Midstream Pipelines: Supports Profibus DP networks for distributed control of pipeline pressure regulators and isolation valves .
4. Manufacturing:
   • Automotive Assembly: Interfaces with proximity sensors and pneumatic actuators in robotic welding cells, ensuring production line synchronization .
   • Food and Beverage: Monitors sterilization temperatures and conveyor speeds, adhering to strict hygiene standards .

Operational Advantages

• Integration: Seamless compatibility with ABB’s DCS ecosystems reduces engineering effort and ensures protocol consistency .
• Scalability: Supports multi-module configurations for large-scale systems, as seen in ABB’s 800xA architecture .
• Cybersecurity: Compliant with ISA Secure Level 2 certification, protecting against unauthorized access in critical infrastructure .

Documentation and Support

• Technical Resources: General guidelines for ABB signal conditioning modules are outlined in the 800xA Technical Manual and IEC 61131-2 standard .
• Authorized Service: Field calibration, firmware updates, and repair services are provided by ABB-certified partners, adhering to OEM standards .
• Lifecycle Management: Aligned with ABB’s Classic Phase lifecycle model, ensuring spare parts availability for up to 10 years post-discontinuation .

Key Considerations

• Installation: Requires DIN rail mounting with proper grounding to meet IEC 61000-6-2 EMC standards .
• Training: ABB offers specialized training on DCS integration and signal conditioning for system integrators .
• Compatibility: Requires Control Builder software version 6.0.0-1 or later for parameter configuration .
