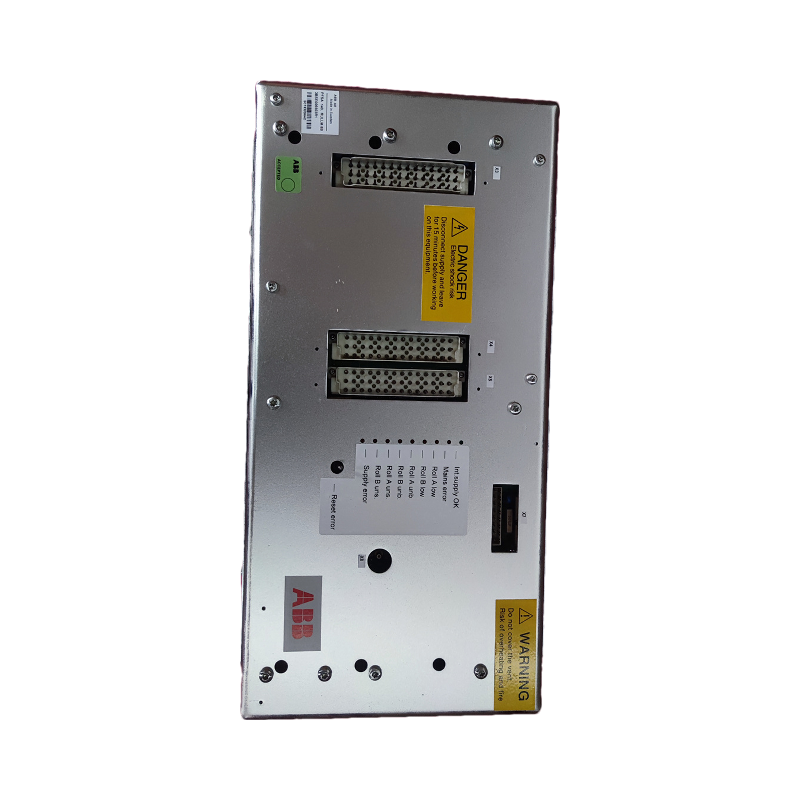

ABB 3BSE006503R1

1. Technical Specifications

Core Functionality:
- The ABB PFSA140 3BSE006503R1 is a DC power supply module designed for ABB’s Freelance DCS (AC 800F system). It provides stable power to controllers, communication modules, and I/O units, ensuring uninterrupted operation of industrial automation systems.
- Input Voltage: 100–240 VAC (±10%), 48–63 Hz.
- Output Voltage: 24 VDC (for system components).
- Power Consumption: ~40 VA (single channel) or ~70 VA (dual channels).
- Environmental Resilience:
  - Operating temperature: -20°C to +60°C (industrial-grade).
  - Enclosure: IP65-rated (dust/water-resistant), with optional heating for low-temperature environments.
- Protection Mechanisms:
  - Overload, overvoltage, and short-circuit protection to safeguard connected equipment.
  - Redundant power mode support for seamless backup with a secondary PFSA140 module.

Tag：

2. Functional Features

High Reliability:
- Designed for continuous operation in harsh industrial environments, with resistance to vibrations, dust, and electrical noise.
- Hot-swappable design allows installation/replacement without system downtime.
Modularity and Scalability:
- Integrates seamlessly with ABB’s Freelance DCS ecosystem, supporting easy expansion of I/O networks.
- Compatible with Ethernet TCP/IP, RS-232/RS-485, and fieldbus protocols for flexible communication.
Diagnostics and Monitoring:
- LED status indicators provide real-time feedback on power, communication, and fault conditions.
- Self-diagnostic capabilities detect module health and trigger alarms for faults (e.g., sensor disconnection, overload).
Ease of Maintenance:
- User-friendly interface for configuration and debugging.
- Minimal downtime due to robust design and modular architecture.

3. Application Scenarios

Process Industries:
- Power Generation: Monitors combustion efficiency in coal/gas-fired plants by measuring O₂, CO₂, and CO levels in flue gas.
- Chemical Manufacturing: Controls reactor temperatures and pressures via analog signal feedback loops.
- Water Treatment: Regulates pump speeds and flow rates based on pressure/level sensor inputs.
Material Processing:
- Printing and Packaging: Maintains constant tension on paper or film to prevent wrinkles or breaks during high-speed production.
- Textile Manufacturing: Controls yarn or布料 (fabric) tension for consistent quality in weaving/knitting machines.
- Metal and Plastic Film Production: Ensures uniform tension in roll-to-roll processes (e.g., aluminum foil, polymer sheets).
Energy and Infrastructure:
- Cable Manufacturing: Monitors cable line tension to prevent deformation or snapping.
- Paper Processing: Stabilizes tension during cutting, winding, or coating operations.
Advanced Control Systems:
- Supports IO control for变频器 (frequency converters) and remote IO stations in industrial Ethernet networks.
- Enables real-time data acquisition and automation in smart factories.

4. Key Advantages

All-in-One Design: Combines power supply and tension control (if configured as a controller) in a single module, reducing hardware complexity.
Industrial-Grade Durability: Withstands extreme temperatures, vibrations, and electrical noise for 24/7 operation.
Cost Efficiency: Lowers maintenance costs through self-diagnostics and hot-swappable components.
Global Support: Backed by ABB’s worldwide service network for spare parts and technical assistance.

5. Certifications

Complies with IEC 61010 (safety standards for electrical equipment).
Certified for ATEX Zone 2 (explosive atmospheres) and UL/cUL safety standards.
