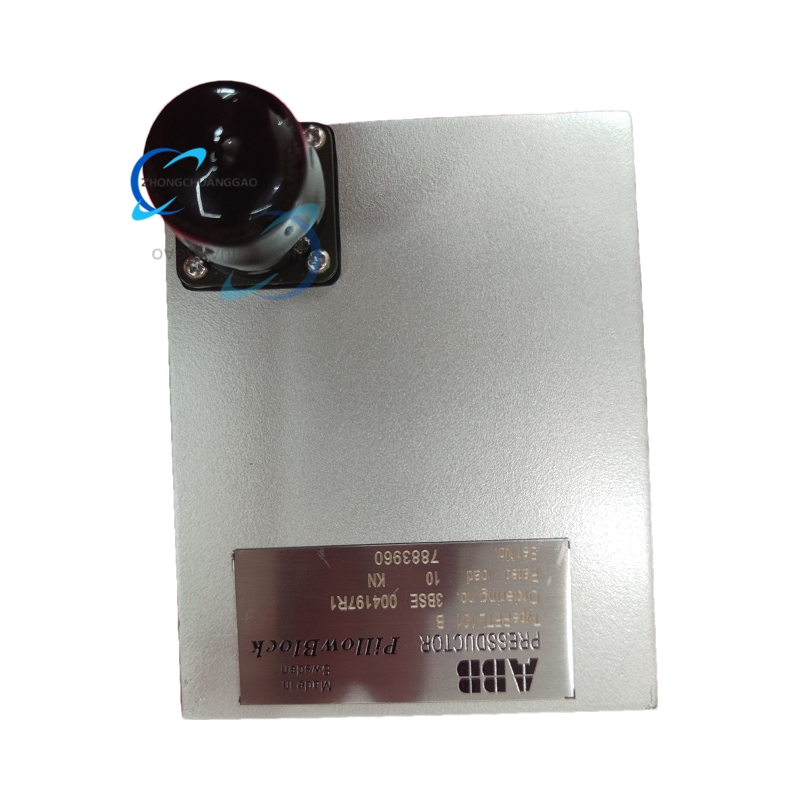

ABB 3BSE004197R1

Technical Specifications

• Rated Load: 10 kilonewtons (KN) with overload capacity up to 50 KN (5x rated load) to withstand extreme mechanical stress .
• Transverse Load Capacity: 30 KN, ensuring resistance to lateral forces common in dynamic industrial settings .
• Deflection: 0.015 mm at full load, minimizing mechanical interference with the measured system .
• Spring Constant: 650 KN/mm, providing high structural stiffness for stable measurements .
• Material: Constructed from stainless steel for corrosion resistance and durability in demanding environments .
• Accuracy: ±0.25% of full scale (FS), ensuring precise tension monitoring in critical processes .
• Operating Temperature: -40°C to +80°C, maintaining stability across wide thermal ranges .
• Protection Class: IP66/67, sealing against dust and water ingress, including temporary submersion .
• Mounting: Pillow block design for easy integration into machinery, with alignment holes for secure installation .

Functional Features

1. Pressductor® Technology:
   Utilizes the magnetoelastic effect to convert mechanical force into electrical signals without physical deformation, ensuring high immunity to electromagnetic interference and unlimited load cycles .
2. Signal Output:
   Generates analog AC voltage signals (typically 0–10 V or 4–20 mA), compatible with standard industrial controllers. Integration with ABB’s PFEA112/PFEA113 signal processing units enables conversion to digital outputs for PLC/DCS systems .
3. Self-Diagnostic Capabilities:
   Includes built-in fault detection for open/short circuits and signal integrity issues, transmitting alerts via the control system’s HMI for proactive maintenance .
4. Environmental Resilience:
   The acid-resistant variant (PFTL101BER-10.0KN) features specialized coatings and seals, making it suitable for corrosive environments like wet-end paper machines .
5. Mechanical Design:
   Compact dimensions (250 × 250 × 60 mm) and low weight (approximately 3 kg) facilitate installation in space-constrained machinery without compromising performance .

Application Scenarios

1. Metallurgy:
   • Steel Mills: Monitors tension in rolling mills, galvanizing lines, and annealing furnaces to ensure uniform strip thickness and prevent material defects .
   • Aluminum Processing: Controls tension in foil rolling and extrusion processes to maintain product quality .
2. Paper and Pulp:
   • Web Handling: Regulates tension in paper machines, winders, and coating lines to prevent stretching or tearing during production .
   • Reel Management: Optimizes tension during reel changeovers to minimize downtime and waste .
3. Plastics and Packaging:
   • Extrusion Lines: Ensures consistent tension in plastic film and sheet production, critical for dimensional stability .
   • Labeling Systems: Synchronizes conveyor belts and labeling heads with sub-millisecond precision .
4. Textile Manufacturing:
   • Spinning and Weaving: Monitors thread tension in high-speed spinning machines and looms to reduce defects .
   • Fiber Processing: Controls tension in synthetic fiber production for uniform denier .
5. General Industrial Use:
   • Conveyor Systems: Validates load distribution in heavy-duty material handling equipment to prevent belt slippage .
   • Robotics: Provides force feedback in robotic assembly systems for precise part manipulation .

Operational Advantages

• Reliability: Engineered for high MTBF (Mean Time Between Failures), with redundant internal components and surge protection against voltage fluctuations .
• Scalability: Compatible with ABB’s distributed control systems (DCS) and PLCs, enabling integration into larger automation architectures .
• Cost Efficiency: Extended lifecycle support under ABB’s Classic Phase model ensures access to spare parts and technical assistance for up to 10 years after production discontinuation .

Documentation and Support

• Technical Resources: ABB provides detailed datasheets and installation manuals through its official customer portal (myABB), requiring part number verification for access .
• Authorized Service: Field calibration and repair services are available via ABB-certified partners like Xiamen Xiongba, ensuring compliance with OEM standards .
• Lifecycle Management: Users can request retrofit kits or migration strategies to newer ABB load cell models (e.g., PFTL201C) when upgrading systems .
