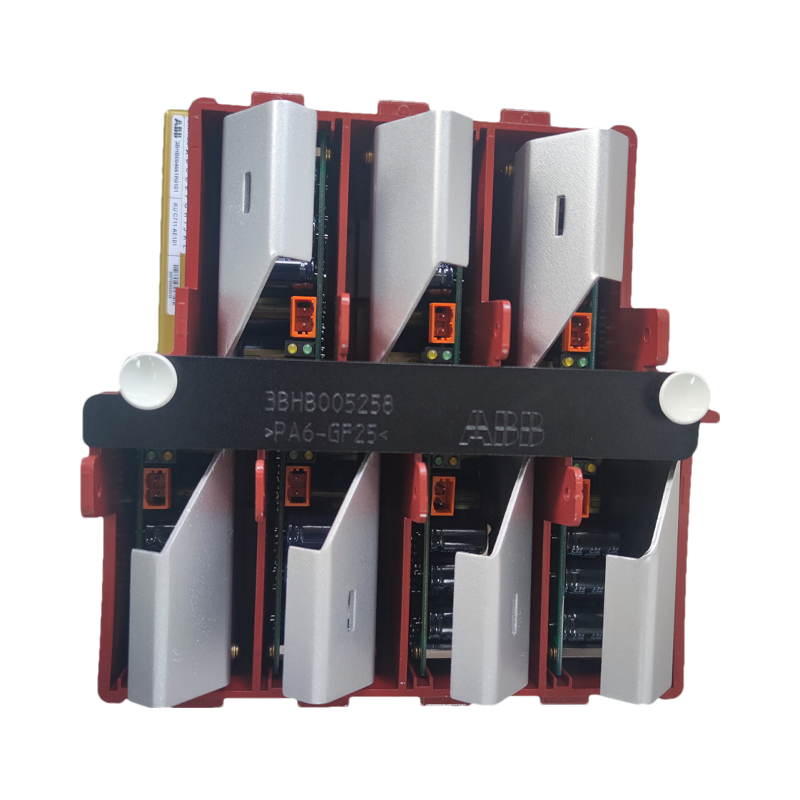

ABB 3BHB004661R0101

Technical Specifications

• Power Supply:
  • Input Voltage: 85–264 V AC (wide-range compatibility for global industrial environments) .
  • Output Voltage: 24 V DC (stabilized power for gate unit electronics) .
  • Output Current: 4 A (continuous rating for standard configurations) .
  • Efficiency: >90% under full load, minimizing energy waste in long-term deployments .
• Communication Interfaces:
  • Dual Ethernet Ports: 10/100 Mbps with support for Link Aggregation Control Protocol (LACP) for redundant data paths .
  • Protocol Support: Modbus TCP, Profibus DP, and IEC 61158 for interoperability with legacy and modern control systems .
• Signal Handling:
  • Digital Inputs/Outputs: 16 channels each (24 V DC), with optical isolation up to 1500 V DC to protect against voltage transients .
  • Analog Inputs: 0–10 V or 4–20 mA with ±0.1% full-scale accuracy for precise process monitoring .
• Environmental Ratings:
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F), suitable for harsh industrial settings .
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Humidity: 5–95% non-condensing, ensuring stability in humid or dry conditions .
  • Protection Class: IP40-rated housing for dust and solid object protection, requiring indoor installation .
• Physical Dimensions:
  • Size: 276 mm (depth) × 194 mm (width) × 185 mm (height), designed for DIN rail mounting in control cabinets .
  • Weight: 4.56 kg (net), facilitating secure installation in vibration-prone environments .

Functional Features

1. Redundant Communication:
   • Dual 100 Mbps Channels: Provides high-speed data exchange between system components in ABB’s Symphony Plus DCS .
   • LACP Support: Aggregates multiple Ethernet links for increased bandwidth and fault tolerance .
2. Power Supply and Regulation:
   • Stable 24 V DC Output: Powers gate units and control modules in industrial drives and automation systems .
   • Overload Protection: Built-in safeguards against short circuits and overcurrent conditions .
3. Excitation Control:
   • Rotating Machine Management: Adjusts excitation voltage (0–1500 V) and current (0–100 A) for synchronous generators, motors, and transformers .
   • Protection Functions: Monitors excitation voltage (±15% tolerance) and current (±20% tolerance) with automatic shutdown during faults .
4. Diagnostics and Monitoring:
   • Real-Time Health Checks: Continuously monitors internal components (e.g., power supply, communication modules) and triggers alarms via SCADA systems .
   • Event Logging: Records fault data with millisecond timestamp accuracy for post-fault analysis .
5. Modular Design:
   • Field-Replaceable Units (FRUs): Individual components (e.g., power modules, communication cards) can be replaced without system downtime .
   • Firmware Updates: Supports remote upgrades to enhance compatibility with evolving industry standards .

Application Scenarios

1. Industrial Automation:
   • Distributed Control Systems (DCS): Integrates with ABB’s Symphony Plus to manage process control in chemical, petrochemical, and power generation facilities .
   • Motor Control Centers (MCCs): Provides redundant communication and power regulation for large industrial motors in steel mills and mining operations .
2. Power Generation and Transmission:
   • Synchronous Generators: Controls excitation systems to stabilize voltage and frequency in thermal, hydro, and wind power plants .
   • High-Voltage Direct Current (HVDC): Manages power flow in transmission networks by regulating excitation parameters .
3. Critical Infrastructure:
   • Data Centers: Ensures uninterrupted power supply by synchronizing backup generators and monitoring UPS systems .
   • Transportation: Manages traction power substations for railways and metro systems, ensuring reliable power distribution to trains .
4. Renewable Energy:
   • Inverter-Based Systems: Controls grid synchronization and power quality for solar and wind farms with high penetration of distributed energy resources (DERs) .

Operational Advantages

• Multi-Functional Capability: Combines communication redundancy, power supply, and excitation control in a single compact unit, reducing system complexity .
• Reliability: Engineered with industrial-grade components for high MTBF (mean time between failures), aligning with ABB’s stringent quality standards .
• Scalability: Supports modular expansion for large-scale systems, with the ability to add communication or control modules as needed .
• Cybersecurity: Compliant with IEC 62351 standards for secure communication, protecting against unauthorized access in critical infrastructure .

Documentation and Support

• Technical Resources: Configuration guidelines and safety manuals are available in the Symphony Plus System Documentation and Excitation Controller Technical Reference .
• Authorized Service: Field calibration, firmware updates, and repair services are provided by ABB-certified partners, adhering to OEM standards .
• Lifecycle Management: Aligned with ABB’s Classic Phase model, ensuring spare parts availability for up to 10 years post-discontinuation .

Key Considerations

• Installation: Requires compliance with IEC 61000-6-2 EMC standards to minimize electromagnetic interference .
• Training: ABB offers specialized training on DCS integration and excitation control for system integrators .
• Compatibility: Works with Relion® Manager software for parameter configuration and PCM600 for advanced diagnostics .
